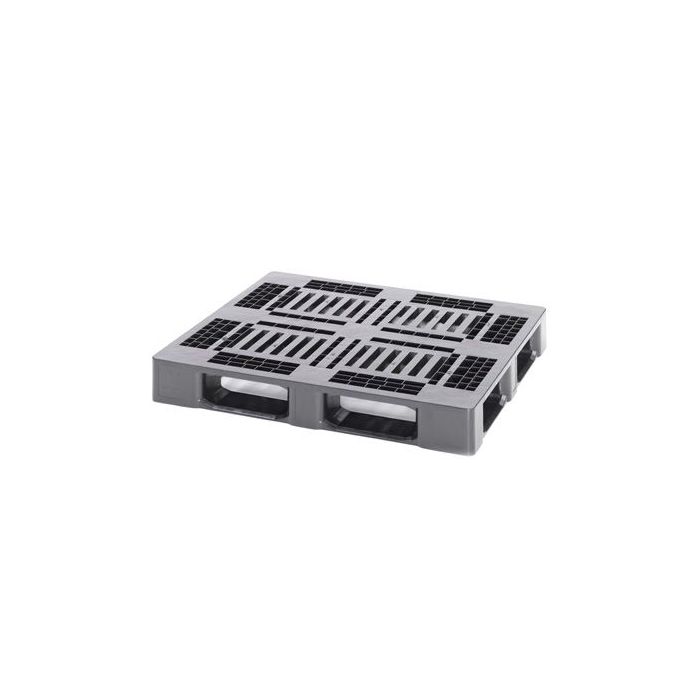

Industrial Pallet with steel reinforcement 120x100x15 cm, on 5 skids
NPMPHD12105OS
€52.00
Price per piece
Product information
- Industrial pallet without ridges, for heavy duty applications and intensive logistical use
- Equipped with reinforcement: steel bars that are inserted into the pallet during production to reinforce it against bending
- Compliant with IPPC, and do not require additional treatment against pests
- Universal use in distribution, storage or export
- The rounded design of the pallet cleats prevents tear wrapping and stretch film
- Pallets are resistant to the most aggressive chemicals (acids and alkalis)
- On request with company logo
- Minimum order per stack is 14 pieces
Technical Details
- Static load capacity: 6000 kg
- Dynamic load capacity: 3000 kg
- Shelf capacity: 1750 kg
| Specification | |
|---|---|
| Item Number: | NPMPHD12105OS |
| External dimension cm | 120 x 100 x 15 |
| Material | RE-HDPE |
| Colour | Silver grey |
| Underside construction | 5 skids |
| Weight (kg) | 13.96 |
| Additional Information | Perforated slotted top deck without upright edges all around, underside 2 transverse and 3 longitudinal slats, drive-in 4-sided, pallet is reinforced with metal tubing profiles |
Information
Plastic pallet without ridges, with reinforcement: steel rods that are inserted into the pallet during production to prevent it from bending. The Heavy Duty pallets from NORAH Plastics are extremely robust plastic pallets developed for extremely heavy loads; the perfect solution for fully automated high bay warehouses or transport. Our pallets are reinforced with a steel tube reinforcement and are therefore able to carry a weight of up to 6000 Kg. If a pallet is loaded on deflection, tensile forces occur locally. This is the case when a pallet is placed in a rack resting on two supports. Due to its own weight and possibly other loads, the pallet can deflect in the middle. As a result, tensile forces occur at the bottom of the slats and compressive forces at the top. Because steel can absorb tensile forces, steel rods are incorporated into the pallet at those places where tensile forces occur: the reinforcement. This makes the pallet heavy duty and equipped for extra heavy applications. Made from first-class raw materials and compatible with all standard handling and transport systems. The pallets are repair and maintenance free. Individual printing such as name and logo or special colors are available on request.
